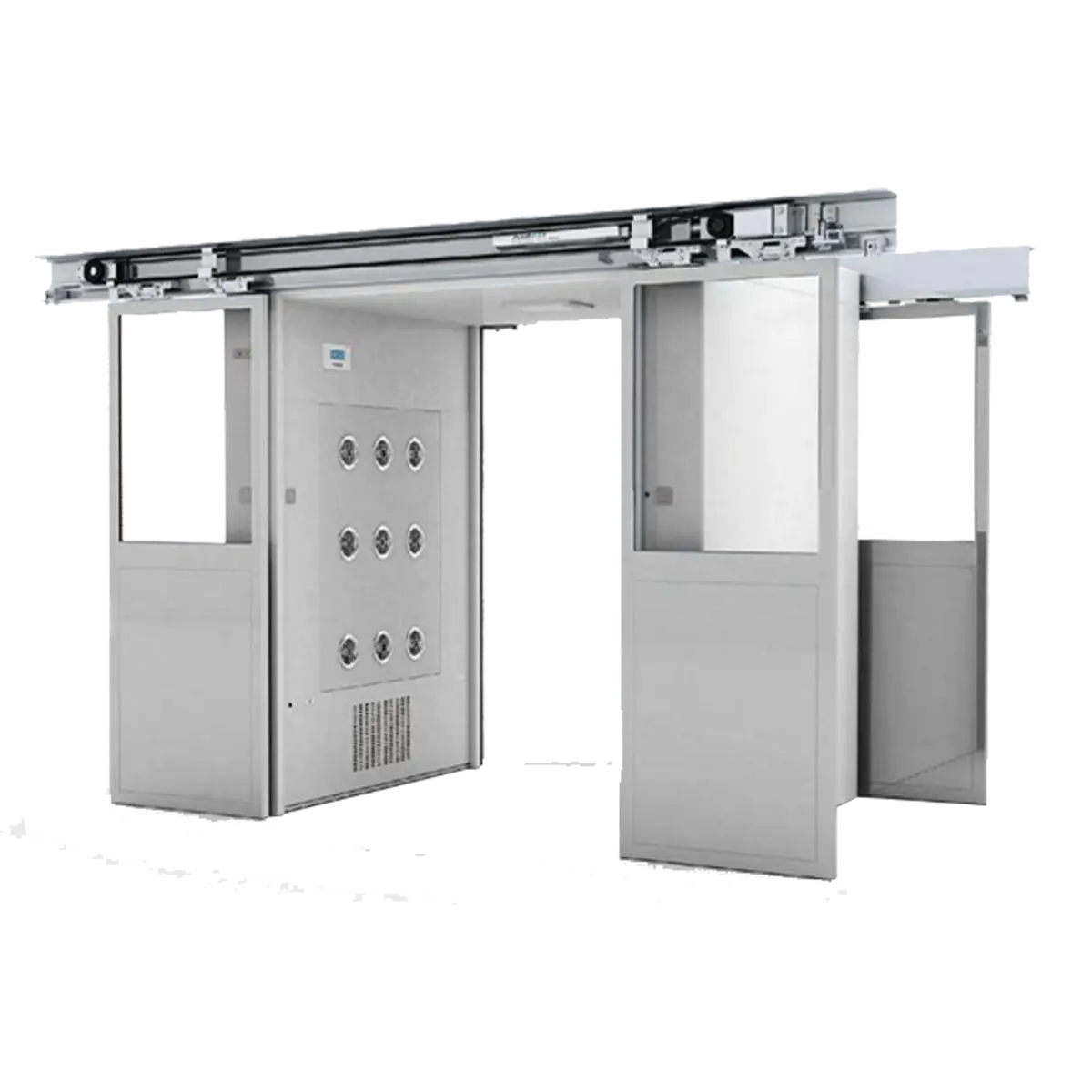

Lab Stainless steel Goods Shower

Lab Stainless Steel Cargo Shower


1. Stainless steel cargo shower is used as an airlock between the clean area and nonclean area as a chanel to dellever goods

2. Cargo shower help to clean the dirt and other small particles during entering into the cleanroom

Lab Stainless Steel Cargo Shower

1.  Lab Stainless Steel Cargo Shower Material

  • Completely self-contained, pre-wired, fully equipped Air Shower/Tunnel systems help solve decontamination problems
  • Modular design lets you order a system to suit your cleanroom
  • HEPA filter/blower modules (rated 99.99% efficient @ 0.3 micron particles) wash personnel with Class 100 air to dislodge and remove particles
  • Solid-state microprocessor panel provides programmable control over access door operation.
  • Electromagnetic interlocking doors minimize contamination and automatically release in the event of power failure or when the emergency stop button is pressed
  • Energy-efficient LED lighting mounted on the ceiling
  • Available in white powder-coated or stainless steel to meet various cleanroom requirements
  • Variety of sizes and door configurations
  • Economical to operate and easy to maintain
  • An ionizing bar is available as an optional accessory

2. Lab Stainless Steel Cargo Shower Application

Cargo shower is a necessary passage for goods to enter the clean room, and it can reduce the pollution problems caused by goods entering and leaving the clean room. The two doors of the cargo shower room are electronically interlocked, which can double as an air lock room to prevent unpurified air from entering the clean room. The high-tech intelligent voice cargo shower room is equipped with a voice prompt system, and the automatic voice system is used when blowing Reminder, humanized voice prompts give people a cordial feeling and achieve effective purification effects. The clean air flow filtered by the high-efficiency filter is sprayed from the rotatable nozzle to the surface of the object from all directions to effectively and quickly remove dust particles. The air of dust particles is filtered by the primary and high-efficiency filters and recirculated to the air shower area.

3. Lab Stainless Steel Cargo Shower Size

Model MT-CS-2020 MT-CS-2520 MT-CS-2030
External size W*D*H mm 2000*2000*2200 2500*2000*2200 2500*3000*2200
Internal size W*D*H mm 1500*1930*2000 2000*1930*2000 2000*2930*2000
Applied Cargo Small Trolley Middle Trolley Big Trolley
Material 304 Stainless steel 304 Stainless steel 304 Stainless steel
Exhuast Fan Power 380V/50Hz/110W*1 380V/50Hz/110W*2 380V/50Hz/110W*3
Air Capacity 1300 CMH 2600 CMH 3900 CMH
Fan Speed RPM 2800 2800 2800
Nozzle Numbers 24PCS 24PCS 36PCS
Nozzle Diameter 30 mm 30 mm 30 mm
Air Velocity Over 25 m/s Over 25 m/s Over 25 m/s
Noise Less than 62 dB Less than 62 dB Less than 62 dB
HEPA Efficiency 99.99% @0.3um 99.99% @0.3um 99.99% @0.3um
HEPA Pressure Drop Less than 220 Pa Less than 220 Pa Less than 220 Pa
Lighting 1x Recessed LED 2 x Recessed LED 3x Recessed LED
