Ductless Fume Hood With Exhaust Fan And Filter
Features:
1. No need to install pipes for ductless fume hood, convenient installation, no exhaust gas
2. Advanced modular filtration technology, which completely adsorbs harmful gases, particulate dust and other substances produced by filtration experiments.
3. No need to consume air-conditioning energy consumption, saving energy efficiently.
1. Ductless Fume Hood Casing
1. Metal parts: the main material is ≥1.2mm galvanized steel sheet, epoxy resin electrostatic spraying, covered with durable anti-chemical lead-free coating, maintaining high finish and minimizing the influence of corrosion and moisture.
2. Front panel and side panel: The main material is ≥6mm acrylic sheet, which has excellent weather resistance, excellent chemical resistance, not easy to aging, colorless and transparent, transparent, visually comfortable, and beautiful. testing on 49 kinds of regular chemicals by SEFA authorized third party laboratory
2. Ductless Fume Hood Specification
| Model | MTDFH800 | MTDFH1000 | MTDFH1275 | MTDFH1600 |
|---|---|---|---|---|
| External Size (mm) | W:800*D:620*H:1900 | W:1000*D:620*H:1900 | W:1275*D:620*H:1900 | W:1600*D:620*H:1900 |
| Internal Size (mm) | W:764*D:540*H:860 | W:971*D:540*H:860 | W:1172*D:670*H:1030/1240 | W:1497*D:540*H:860 |
| Exaust Fan / Filter | 1 Exhaust Fan, 4 Filters | 1 Exhaust Fan, 4 Filters | 1 Exhaust Fan, 6 Filters | 2 Exhaust Fans, 8 Filters |
| Air Capacity | 230 CMH | 230 CMH | 230 CMH | 460 CMH |
| Noise | 40 dB | 55 dB | ||
| Power Supply | 220V to 240V, 50/60 Hz | |||
| Face Velocity | 0.4 to 0.6 m/s | |||
| Worktop | 12.7 mm black color phenolic resin worktop with marine edge, OR other lab worktop option | |||
| Sash | Made of transparaent acrylic | |||
| Sash Opening | fold forward top | |||
| Light | 1 pcs *258w LED lamp | |||
| Water Supply | 1 * Single way brass water tap, 1*PP cap | |||
| Control Panel | 1 pcs * 7 inch touch screen control system and alarm system | |||
| Lab Worktop Options | Regular Thickness | Regular Color | Application Industry |
|---|---|---|---|

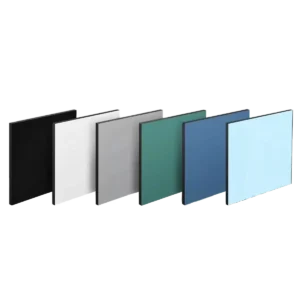

| Phenolic Resin Worktop | 12.7, 16,19,25 or customized | Black, Grey, White or Customized | University, Hospital, Testing Lab |
| Epoxy Worktop | 15,16,19,20,25 mm | Black, Grey, White, blue | University, Hospital |
| Ceramic Worktop | 20 mm | Black, Blue | University, Pharmaceutical, Research Lab |
| Trespa | 13,16,20 mm | Black | Hospital, Research Lab |
| Stainless Steel Worktop | 25 mm | Original Color | Microbiology Lab |
| Marble | 40 mm | Black | Balance Table |
